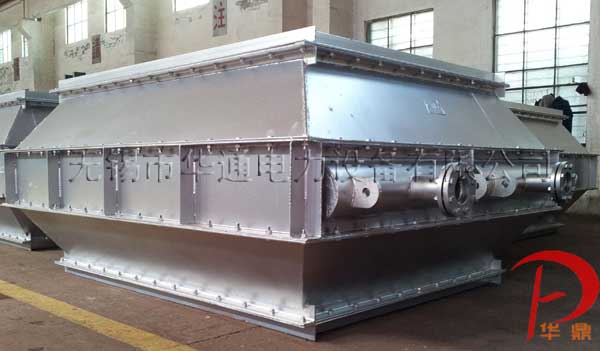

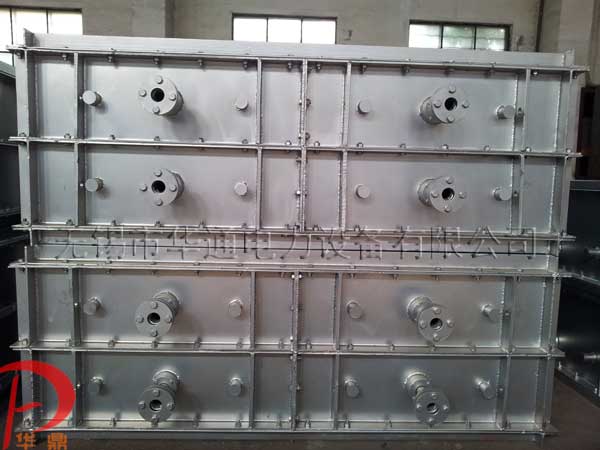

序号 | 型号 | 外形尺寸 |
進出口管外徑 進Φ1/出φ2 |
||
A | B | C | |||
1 | SAH-口-3No1 | 1075 | 2120 | 240 | 76×5/42×3 |
2 | SAH-口-3No2 | 1075 | 2320 | 240 | 76×5/42×3 |
3 | SAH-口-3No3 | 1075 | 2520 | 240 | 76×5/42×3 |
4 | SAH-口-3No4 | 1075 | 2720 | 240 | 76×5/42×3 |
5 | SAH-口-3No5 | 1075 | 2920 | 240 | 76×5/42×3 |
6 | SAH-口-3No6 | 1075 | 3120 | 240 | 76×5/42×3 |
7 | SAH-口-3No7 | 1075 | 3320 | 240 | 76×5/42×3 |
8 | SAH-口-3No8 | 1075 | 3520 | 240 | 76×5/42×3 |
9 | SAH-口-3No9 | 1075 | 3720 | 240 | 76×5/42×3 |
10 | SAH-口-3No10 | 1075 | 3920 | 240 | 76×5/42×3 |
11 | SAH-口-3No11 | 1075 | 4120 | 240 | 76×5/42×3 |
序号 | 換熱面積F1 | 空氣流通面積F2 | 螺栓數 | 參數重量 | ||||||
A-3.5片距 | B-4.5時 | C-5.5 | a | b | c | a | b | c | ||
1 | 65.1 | 49 | 43.2 | 1.0066 | 1.044 | 1.0657 | 58 | 437 | 398 | 371 |
2 | 72.3 | 55 | 48 | 1.117 | 1.1586 | 1.1828 | 60 | 474 | 431 | 401 |
3 | 79.4 | 61 | 52.8 | 1.228 | 1.2743 | 1.299 | 62 | 510 | 463 | 430 |
4 | 86.6 | 67 | 57.6 | 1.3384 | 1.3878 | 1.417 | 64 | 546 | 496 | 460 |
5 | 93.8 | 73 | 62.4 | 1.449 | 1.5024 | 1.5341 | 66 | 581 | 528 | 490 |
6 | 101 | 79 | 67.2 | 1.56 | 1.6131 | 1.6512 | 68 | 618 | 561 | 520 |
7 | 108.2 | 85 | 72 | 1.67 | 1.7316 | 1.7683 | 70 | 654 | 594 | 549 |
8 | 115.4 | 91 | 76.8 | 1.781 | 1.8462 | 1.8854 | 72 | 690 | 626 | 579 |
9 | 122.6 | 97 | 81.6 | 1.892 | 1.9608 | 2.0025 | 74 | 726 | 659 | 609 |
10 | 129.8 | 103 | 86.4 | 2.0027 | 2.0754 | 2.1196 | 76 | 761 | 691 | 638 |
11 | 137 | 109 | 91.2 | 2.1134 | 2.19 | 2.2367 | 78 | 797 | 724 | 668 |
序号 | 型号 | 外形尺寸 |
進出口管外徑 進Φ1/出φ2 |
||
A | B | C | |||
1 | SAH-口-4No1 | 1075 | 2120 | 290 | 76×5/42×3 |
2 | SAH-口-4No2 | 1075 | 2320 | 290 | 76×5/42×3 |
3 | SAH-口-4No3 | 1075 | 2520 | 290 | 76×5/42×3 |
4 | SAH-口-4No4 | 1075 | 2720 | 290 | 76×5/42×3 |
5 | SAH-口-4No5 | 1075 | 2920 | 290 | 76×5/42×3 |
6 | SAH-口-4No6 | 1075 | 3120 | 290 | 76×5/42×3 |
7 | SAH-口-4No7 | 1075 | 3320 | 290 | 76×5/42×3 |
8 | SAH-口-4No8 | 1075 | 3520 | 290 | 76×5/42×3 |
9 | SAH-口-4No9 | 1075 | 3720 | 290 | 76×5/42×3 |
10 | SAH-口-4No10 | 1075 | 3920 | 290 | 76×5/42×3 |
11 | SAH-口-4No11 | 1075 | 4120 | 290 | 76×5/42×3 |
序号 | 換熱面積F1 | 空氣流通面積F2 | 螺栓數 | 參數重量 | ||||||
a | b | c | a | b | c | a | b | c | ||
1 | 85.8 | 66.2 | 57.0 | 1.0066 | 1.044 | 1.0657 | 58 | 566 | 515 | 480 |
2 | 95.3 | 74.1 | 63.3 | 1.117 | 1.1586 | 1.1828 | 60 | 610 | 554 | 515 |
3 | 104.7 | 82.0 | 69.6 | 1.228 | 1.2743 | 1.299 | 62 | 654 | 592 | 550 |
4 | 114.2 | 89.9 | 75.9 | 1.3384 | 1.3878 | 1.417 | 64 | 699 | 631 | 584 |
5 | 123.7 | 97.8 | 82.3 | 1.449 | 1.5024 | 1.5341 | 66 | 743 | 669 | 619 |
6 | 133.2 | 105.7 | 88.6 | 1.56 | 1.6131 | 1.6512 | 68 | 787 | 708 | 653 |
7 | 142.6 | 113.6 | 94.9 | 1.67 | 1.7316 | 1.7683 | 70 | 831 | 746 | 688 |
8 | 152.1 | 121.5 | 101.2 | 1.781 | 1.8462 | 1.8854 | 72 | 875 | 784 | 722 |
9 | 161.6 | 129.4 | 107.5 | 1.892 | 1.9608 | 2.0025 | 74 | 920 | 823 | 757 |
10 | 171.0 | 137.3 | 113.8 | 2.0027 | 2.0754 | 2.1196 | 76 | 964 | 861 | 792 |
11 | 180.5 | 145.1 | 120.2 | 2.1134 | 2.19 | 2.2367 | 78 | 1008 | 900 | 826 |
序号 | 型号 | 外形尺寸 |
進出口管外徑 進Φ1/出φ2 |
||
A | B | C | |||
1 | SAH-口-5No1 | 1075 | 2120 | 340 | 76×5/42×3 |
2 | SAH-口-5No2 | 1075 | 2320 | 340 | 76×5/42×3 |
3 | SAH-口-5No3 | 1075 | 2520 | 340 | 76×5/42×3 |
4 | SAH-口-5No4 | 1075 | 2720 | 340 | 76×5/42×3 |
5 | SAH-口-5No5 | 1075 | 2920 | 340 | 76×5/42×3 |
6 | SAH-口-5No6 | 1075 | 3120 | 340 | 76×5/42×3 |
7 | SAH-口-5No7 | 1075 | 3320 | 340 | 76×5/42×3 |
8 | SAH-口-5No8 | 1075 | 3520 | 340 | 76×5/42×3 |
9 | SAH-口-5No9 | 1075 | 3720 | 340 | 76×5/42×3 |
10 | SAH-口-5No10 | 1075 | 3920 | 340 | 76×5/42×3 |
11 | SAH-口-5No11 | 1075 | 4120 | 340 | 76×5/42×3 |
序号 | 換熱面積F1 | 空氣流通面積F2 | 螺栓數 | 參數重量 | ||||||
a | b | c | a | b | c | a | b | c | ||
1 | 108.2 | 84.9 | 71.9 | 1.0066 | 1.044 | 1.0657 | 58 | 705 | 640 | 595 |
2 | 120.1 | 94.8 | 79.9 | 1.117 | 1.1586 | 1.1828 | 60 | 762 | 689 | 640 |
3 | 132.1 | 104.8 | 87.8 | 1.228 | 1.2743 | 1.299 | 62 | 818 | 739 | 684 |
4 | 144.0 | 114.7 | 95.8 | 1.3384 | 1.3878 | 1.417 | 64 | 875 | 788 | 729 |
5 | 155.9 | 124.7 | 103.7 | 1.449 | 1.5024 | 1.5341 | 66 | 932 | 838 | 773 |
6 | 167.9 | 134.6 | 111.7 | 1.56 | 1.6131 | 1.6512 | 68 | 989 | 887 | 818 |
7 | 179.8 | 144.6 | 119.6 | 1.67 | 1.7316 | 1.7683 | 70 | 1045 | 937 | 862 |
8 | 191.8 | 154.5 | 127.6 | 1.781 | 1.8462 | 1.8854 | 72 | 1102 | 986 | 907 |
9 | 203.7 | 164.5 | 135.6 | 1.892 | 1.9608 | 2.0025 | 74 | 1159 | 1035 | 952 |
10 | 215.6 | 174.4 | 143.5 | 2.0027 | 2.0754 | 2.1196 | 76 | 1215 | 1085 | 996 |
11 | 227.6 | 184.4 | 151.5 | 2.1134 | 2.19 | 2.2367 | 78 | 1272 | 1134 | 1041 |
